| Image
|
Part No.
|
Rated Power (VA)
|
Primary Voltage (V)
|
Secondary Voltage (V)
|
Low Profile / Standard
|
Secondary Current (mA)
|
Ambient (°C)
|
Drawing
|
Data Sheet
|
Designation |
|
|
44021 |
0.6 |
230 |
2 x 12 |
Standard |
2 x 25 |
70 |
|
 |
EI30-5 - 230 / 2 x 12V - 0.6 VA |
|
|
44033 |
0.6 |
117 |
2 x 12 |
Standard |
2 x 25 |
70 |
|
|
EI30-5 - 117 / 2 x 12V - 0.6 VA |
|
|
44057 |
1 |
230 |
2 x 12 |
Standard |
2 x 42 |
70 |
|
|
EI30-10.5 - 230 / 2 x 12V - 1 VA |
|
|
44069 |
1 |
117 |
2 x 12 |
Standard |
2 x 42 |
70 |
|
|
EI30-10.5 - 117 / 2 x 12V - 1 VA |
|
|
44093 |
1.5 |
230 |
2 x 12 |
Standard |
2 x 63 |
70 |
|
|
EI30-12.5 - 230 / 2 x 12V - 1.5 VA |
|
|
44105 |
1.5 |
117 |
2 x 12 |
Standard |
2 x 63 |
70 |
|
|
EI30-12.5 - 117 / 2 x 12V - 1.5 VA |
|
|
44129 |
2 |
230 |
2 x 12 |
Standard |
2 x 83 |
70 |
|
|
EI30-15.5 - 230 / 2 x 12V - 2 VA |
|
|
44141 |
2 |
117 |
2 x 12 |
Standard |
2 x 83 |
70 |
|
|
EI30-15.5 - 117 / 2 x 12V - 2 VA |
|
|
44165 |
2.3 |
230 |
2 x 12 |
Standard |
2 x 96 |
70 |
|
|
EI30-18 - 230 / 2 x 12V - 2.3 VA |
|
|
44177 |
2.3 |
117 |
2 x 12 |
Standard |
2 x 96 |
70 |
|
|
EI30-18 - 117 / 2 x 12V - 2.3 VA |
|
|
44201 |
3.2 |
230 |
2 x 12 |
Standard |
2 x 133 |
70 |
|
|

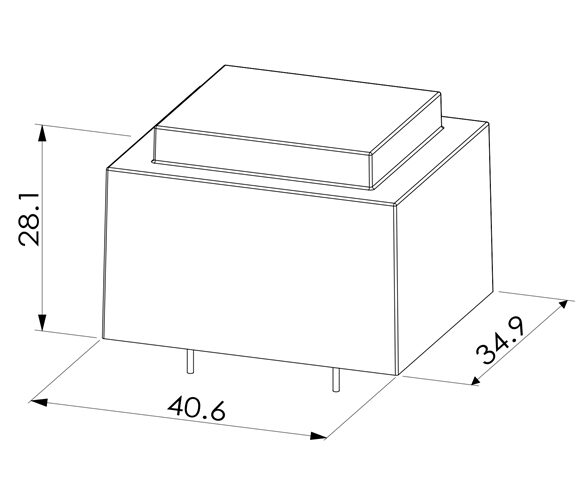

EI38-13.6 - 230 / 2 x 12V - 3.2 VA |
|
|
44213 |
3.2 |
117 |
2 x 12 |
Standard |
2 x 133 |
70 |
|
|
EI38-13.6 - 117 / 2 x 12V - 3.2 VA |
|
|
44237 |
5 |
230 |
2 x 12 |
Standard |
2 x 208 |
50 |
|
|
EI42-14.8 - 230 / 2 x 12V - 5 VA |
|
|
44249 |
5 |
117 |
2 x 12 |
Standard |
2 x 208 |
50 |
|
|
EI42-14.8 - 117 / 2 x 12V - 5 VA |
|
|
44273 |
10 |
230 |
2 x 12 |
Standard |
2 x 417 |
50 |
|
|
EI48-16.8 - 230 / 2 x 12V - 10 VA |
|
|
44285 |
10 |
117 |
2 x 12 |
Standard |
2 x 417 |
50 |
|
|
EI48-16.8 - 117 / 2 x 12V - 10 VA |
|
|
44309 |
16 |
230 |
2 x 12 |
Standard |
2 x 667 |
50 |
|
|

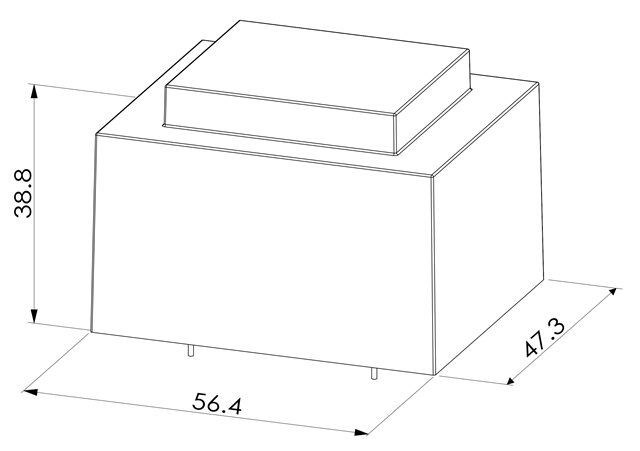

EI54-18.8 - 230 / 2 x 12V - 16 VA |
|
|
44321 |
16 |
117 |
2 x 12 |
Standard |
2 x 667 |
50 |
|
|
EI54-18.8 - 117 / 2 x 12V - 16 VA |
|
|
44334 |
1.5 |
230 |
2 x 12 |
Standard |
63 |
70 |
|
|
EI30-10.5 - 230 / 2 x 12V - 1.5 VA |
|
|
44346 |
1.5 |
117 |
2 x 12 |
Standard |
63 |
70 |
|
|
EI30-10.5 - 117 / 2 x 12V - 1.5 VA |
|
|
44381 |
30 |
230 |
2 x 12 |
Standard |
2 x 1250 |
50 |
|
|

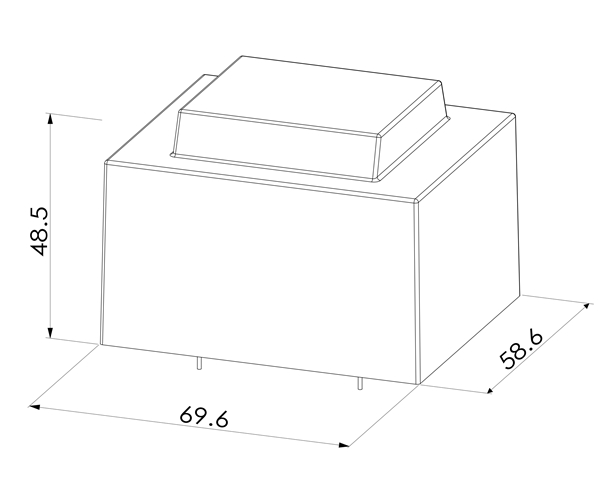

EI66-23 - 230 / 2 x 12V - 30 VA |
|
|
44393 |
30 |
117 |
2 x 12 |
Standard |
2 x 1250 |
50 |
|
|
EI66-23 - 117 / 2 x 12V - 30 VA |
|
|
44440 |
22 |
230 |
2 x 12 |
Standard |
2 x 917 |
50 |
|
|

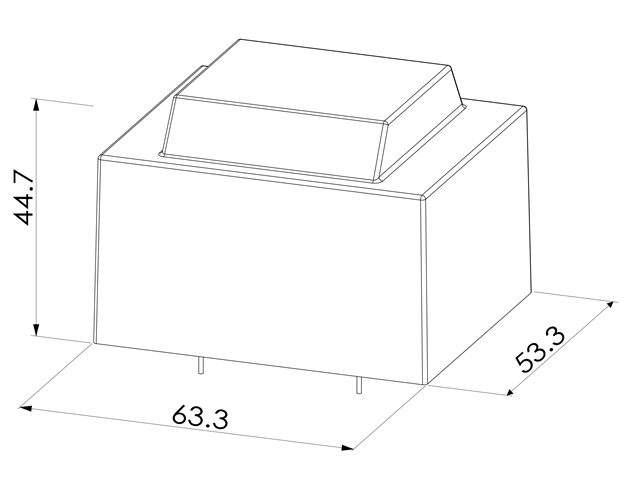

EI60-21 - 230 / 2 x 12V - 22 VA |
|
|
44452 |
22 |
117 |
2 x 12 |
Standard |
2 x 917 |
50 |
|
|
EI60-21 - 117 / 2 x 12V - 22 VA |
|
|
44665 |
1.8 |
230 |
2 x 12 |
Standard |
2 x 75 |
40 |
|
|
EI30-12.5 - 230 / 2 x 12V - 1.8 VA |
